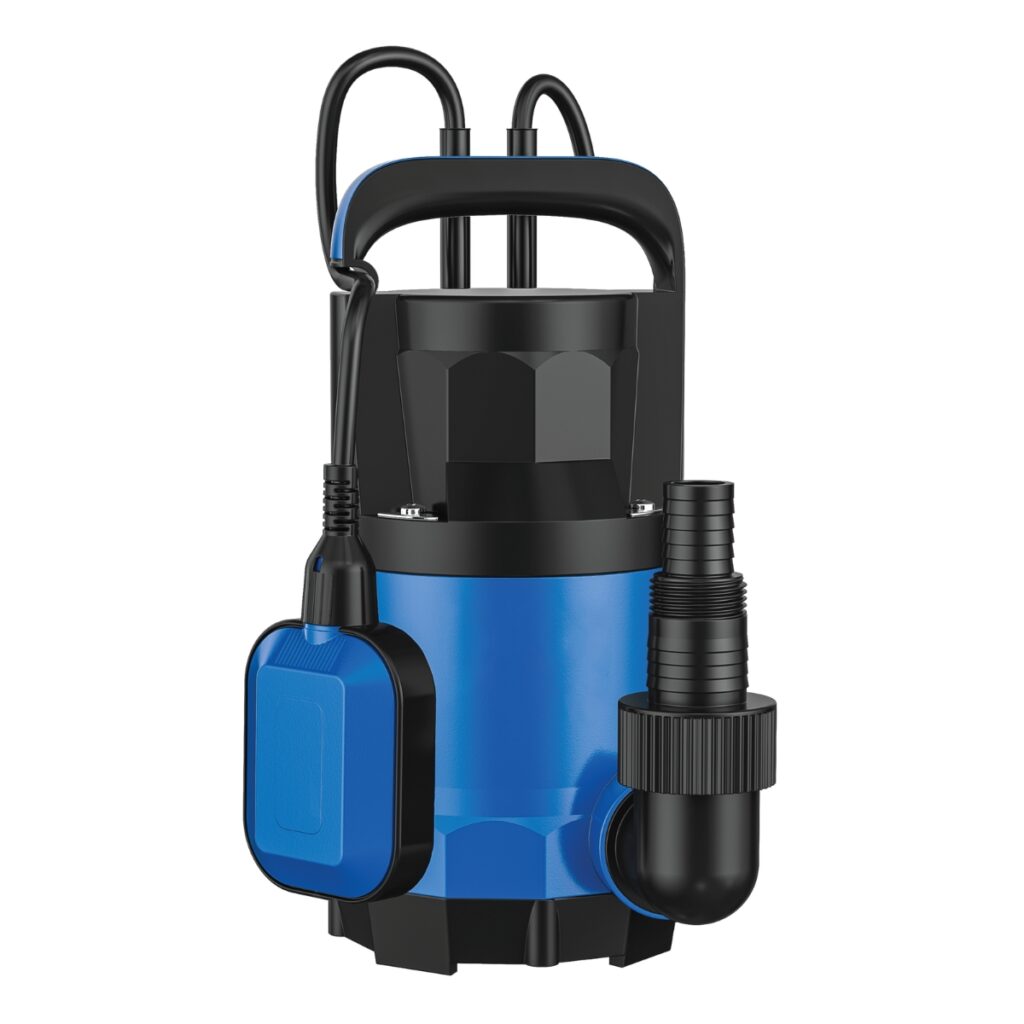

Clean Water Submersible Pump
Model: QDP 750 VE
Application
Suitable for use with clean water that does not contain abrasive particles. As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as domestic, gardening, irrigation and emptying tanks.
PERFORMANCE CHART AT n=2850RPM
10
20
30
40
50
USg.p.m
10
8
6
4
2
0
0
40
80
120
160
200
Head H (m)
Flow rate Q
H [ft]
l/min
2
4
6
8
10
12
m³/h
| NO. | MODEL | INLET/OUTLET | N.W | L × W × H |
|---|---|---|---|---|
| (Inch) | (Kg) | (mm) | ||
| D | QDP-750A/B |
1½" 1" |
5 | 220×182×345 |
| NO. | MODEL | POWER | Q(m³/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | HP | Q(l/min) | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | ||
| D | QDP-750A/B | 0.75 | 1 | H | 9 | 8.5 | 7.8 | 7.2 | 6.5 | 5.8 | 5 | 4 | 3.2 |
